Interaction with Storages in DMS via NBI

General Information

All storages in DMS support interaction through NBI (Northbound Interface). This allows managing stored objects using the REST API. Each storage service is represented as a table in the database.

List of Storages:

AuthStorage

A service for storing user accounts in RDBMS. It interacts with authservice and is used by the administrative portal for user management.

CampaignResultStorage

A service for storing campaign execution results. The history processor writes data to it, and the administrative portal uses it for display.

CampaignStorage

This is a storage service that stores Campaign objects in the RDBMS. It is accessed by Admin Portal to manage campaigns and by Campaign services to get the current list of campaigns.

ConfigTemplateStorage

Configuration File Storage Service.

CpeDbService

A service for storing CPE objects. It is used by most services for searching, updating, and storing information about CPE devices registered in the DMS system.

FirmwareResultStorage

A service for storing firmware update results.

FirmwareStorage

A service for storing firmware update rules in an embedded RDBMS.

ScenarioHistoryStorage

A service for storing scenario result objects initiated by DMS and completed on a CPE device.

Important Note: The list of available storage services depends on the installed configuration, so there may be differences from the documentation.

Interaction Methods

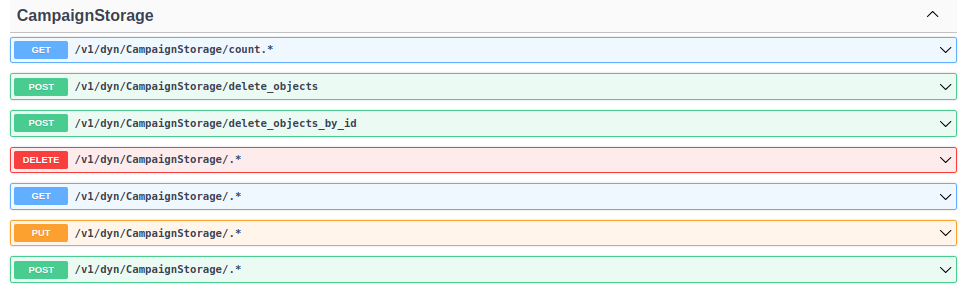

For all storages, the interaction methods are identical:

nbi_methods

Retrieve Object Count

GET /count.* Returns the number of objects in the storage.

Delete a Group of Objects by Criteria

POST /delete_objects Deletes a group of objects based on flexible criteria.

Delete a Group of Objects by Primary Key

POST /delete_objects_by_id Deletes a group of objects based on primary key values.

Note: This method only supports working with primary parameters.

Delete an Object by Identifier

DELETE /.* Deletes an object from storage.

Retrieve an Object from Storage

GET /.* Returns an object from storage.

Modify an Object by Primary Key

PUT /.* Modifies an object in the database by identifier.

Add/Modify an Object

POST /.* Adds or modifies an object in the database.

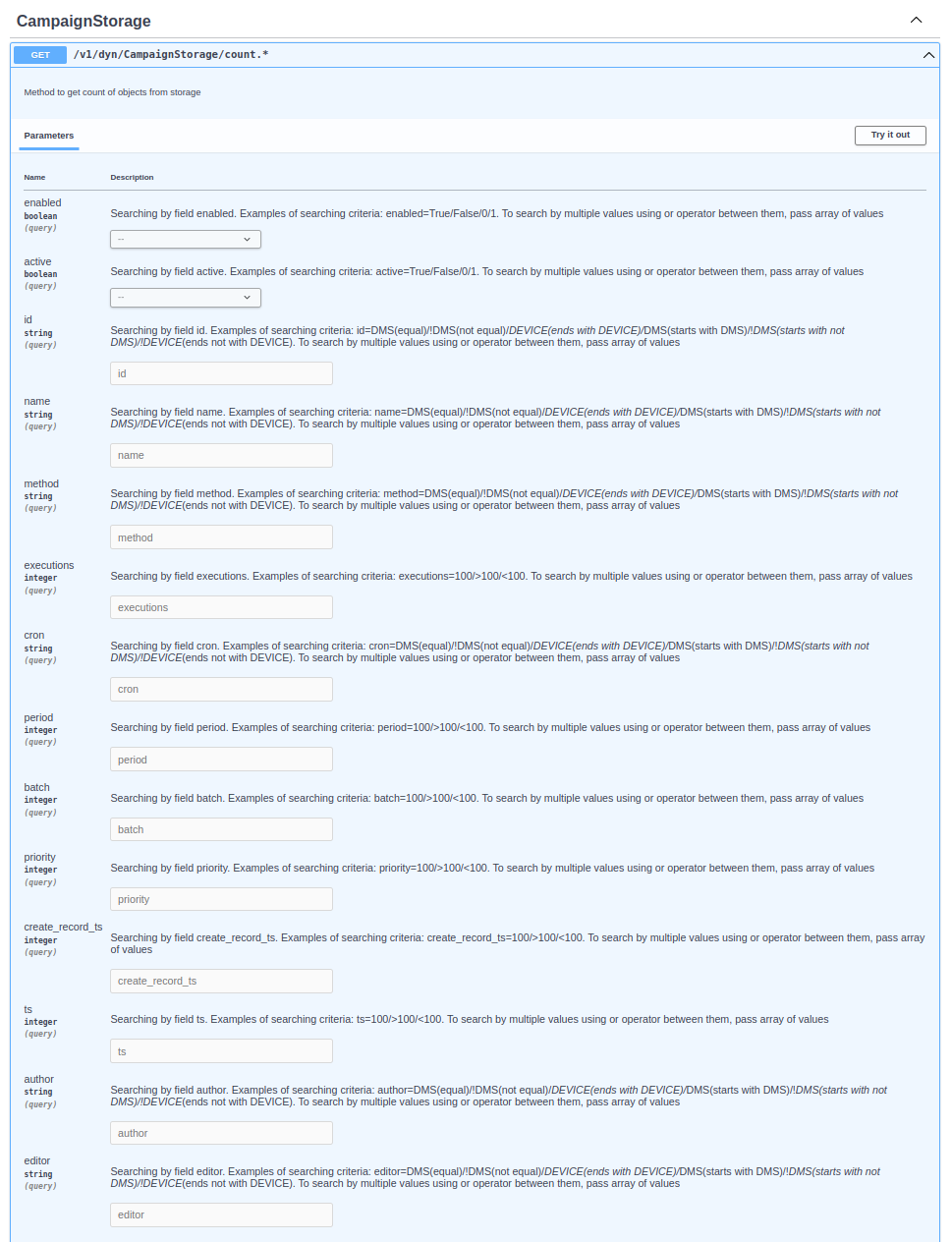

To view them, click on the method tab, and a window will open displaying the available parameters for this method and this storage:

nbi_params

Storage-Specific Parameters

AuthStorage

Parameter	Primary parameter	Type	Description
id	✅	string	Unique identifier of the user
username		string	Name of the user
password		string	Password of the user
claims		json	Reserved field for user description
roles		string	Permission identifiers that define access to different parts of the platform
access_path		string	User group name to restrict interaction to specific CPEs, if the corresponding CPE object has the field set
create_record_ts		integer	Time of user creation
ts		integer	Time of the last update to the user record
author		string	Name of the author who created the user record
editor		string	Name of the last user who edited the user record

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the Users).

CampaignResultStorage

Parameter	Primary parameter	Type	Description
id	✅	string	Unique identifier of the campaign result record
exit_code		integer	Campaign exit code
campaignid		string	Unique campaign identifier
ts		integer	Campaign execution time
cpeid		string	Unique CPE identifier
result		json	Campaign execution result

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the Campaigns Results).

CampaignStorage

Parameter	Primary parameter	Type	Description
enabled		boolean	Campaign status (Enabled/Disabled) (True/False)
active		boolean	Whether to initiate a CPE session by sending a connection request (True/False)
id	✅	string	Unique campaign identifier
name		string	Campaign name
events		list	CPE filter for the campaign based on session event. An empty value means "all"
method		string	Scenario that will be called as part of the campaign
args		json	List of parameters to be passed as input arguments for the scenario executing
executions		integer	Number of executions on each CPE device
cron		string	Cron expression describing the campaign execution schedule (see example below)
period		integer	Campaign activation interval in seconds
batch		integer	Number of CPE devices executed in parallel per activation period
priority		integer	Priority determines the execution order of the campaign on CPE. A lower value means a higher priority
create_record_ts		integer	Time of campaign creation
ts		integer	Time of the last update to the campaign
author		string	Name of the campaign author
editor		string	Name of the last user who edited the campaign

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the Campaigns).

ConfigTemplateStorage

Parameter	Primary parameter	Type	Description
id	✅	string	Unique configuration template identifier
name		string	Configuration template name
path		string	Configuration location
parent		string	Template location hierarchy
version		string	Configuration version
enable		boolean	Configuration template status
vendor		string	CPE device manufacturer
model		string	CPE device model
hv		string	CPE device hardware version
sv		string	CPE device software version
content_type		string	Configuration type (Text/Binary)
content		blob	Configuration content
created		integer	Configuration template creation time
edited		integer	Last configuration template update time
author		string	Configuration template author
editor		string	Last person who edited the configuration template

CpeDbService

Parameter	Primary parameter	Type	Description
state		integer	CPE device status (see the table below)
cpeid	✅	string	Unique identifier for the CPE device
type		string	CPE device protocol version
location		string	CPE device location (see the section Setting Set up CPE location)
access_path		string	Identifier that restricts access to the CPE for users not part of the allowed group
datamodel		string	Data model of the CPE device (TR098/TR181)
vendor		string	CPE device manufacturer
model		string	CPE device model
mac		string	MAC address of the CPE device
hw		string	Hardware version of the CPE device
sw		string	Software version of the CPE device
ip		string	IP address of the CPE device
ip2		string	Secondary IP address of the CPE device
ip3		string	Tertiary IP address of the CPE device
upstream		string	Serial number of the device at a higher hierarchy level in the network structure
protocol		string	Protocol of the CPE device
firstseen		integer	Time of the first interaction of the CPE device with the ACS
lastseen		integer	Time of the last interaction of the CPE device with the ACS
ts		integer	Time of the last record update
params		json	Cached "name-value" pairs of parameters from the CPE device data model
customparams		json	Custom parameters associated with the CPE device
events		json	List of protocol and system events from the last CPE device session
info		string	Reserved field for user information about the CPE device
tags		list	Reserved field for tagging the CPE device
customtags		list	Reserved field for custom tagging of the CPE device
device_classes		list	Reserved field for CPE device classes
cid		string	Custom identifier for the CPE device
cid2		string	Secondary custom identifier for the CPE device
cid3		string	Tertiary custom identifier for the CPE device
imsi		string	IMSI identifier for the CPE device
imei		string	IMEI identifier for the CPE device
msisdn		string	MSISDN identifier for the CPE device

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the CPE Device).

CPE Device Status Table

Value	Description
0	Information received
1	Connection request sent
2	CPE initialization
3	New CPE
4	Waiting for CPE session
5	CPE unavailable (missed periodic inform interval)
6	CPE unavailable (CNR timeout)
7	CPE error
8	Software update
9	CPE reboot
10	Unauthenticated request

FirmwareResultStorage

Parameter	Primary parameter	Type	Description
id	✅	string	Unique identifier of the firmware update result record
status		boolean	Status of the firmware update procedure
ts		integer	Time of the firmware update procedure execution
cpeid		string	Unique identifier of the CPE device
rule_description		string	Description of the firmware update rule
campaignid		string	Unique identifier of the firmware update rule
result		json	Result of the firmware update procedure

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the Upgrade Results).

FirmwareStorage

Parameter	Primary parameter	Type	Description
id	✅	string	Unique identifier of the firmware update rule record
enabled		boolean	Status of the firmware update rule (Enabled/Disabled)
automatic		boolean	To activate the firmware update rule, enable this option. If enabled, any CPE device that connects to the ACS and matches the update rule will be updated
description		string	Description of the firmware update rule
file		string	Link to the firmware (only the file name for firmware files uploaded to the ACS file server, or the full URL for software files hosted on an external file server)
create_record_ts		integer	Record creation time
ts		integer	Time of the last update
condition		json	CPE criteria (condition for applying the firmware rule)
executions		integer	Number of executions on each CPE device
priority		integer	Priority of the rule (a higher number indicates a higher priority)
author		string	Name of the author of the firmware record
editor		string	Name of the last editor of the firmware record

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the Firmwares).

ScenarioHistoryStorage

Parameter	Primary parameter	Type	Description
id	✅	string	Unique identifier of the scenario execution record
exit_code		integer	Exit code of the scenario execution
ts		integer	Record creation time
start_ts		integer	Time when the scenario execution was initiated
end_ts		integer	Time when the scenario execution was completed
cpeid		string	Unique identifier of the CPE device
scenario		string	Name of the scenario
initargs		json	List of parameters passed as input arguments for scenario execution
author		string	User or service that initiated the scenario execution

Interaction with this table is also possible through the UI in the Admin Portal (Refer to the Scenario History).

Campaign Storage Usage Example

Examples of interaction are provided for the Campaign Storage service; for other storage services, the interaction is carried out in the same manner.

GET /count.*

Request:

curl -X 'GET' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/count.*?author=admin' \
  -H 'accept: application/json'

Response:

{
  "code": 200,
  "message": "response from CampaignStorage",
  "details": 2
}

POST /delete_objects

Request:

curl -X 'POST' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/delete_objects' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "conditions": {
    "period": "120"
  },
  "batch_size": 10000,
  "return_deleted_records": true,
  "return_fields_of_deleted_records": []
}'

Response:

{
  "code": 200,
  "message": "response from CampaignStorage",
  "details": {
    "data": {
      "deleted_objects_number": 2,
      "deleted_records": [
        {
          "id": "",
          "enabled": false,
          "active": true,
          "name": "Get GPV",
          "condition": {
            "cpeid": "DMS*"
          },
          "events": [
            "2 PERIODIC"
          ],
          "method": "CWMP.GetParameterValues",
          "args": [
            "InternetGatewayDevice.ManagementServer."
          ],
          "executions": 1,
          "cron": "",
          "period": 120,
          "batch": 100,
          "priority": 2,
          "create_record_ts": 0,
          "ts": 0,
          "author": "operator",
          "editor": ""
        },
        {
          "id": "30ca067a-0126-47cf-884b-3796b6eed02c",
          "enabled": false,
          "active": false,
          "name": "GET GPN",
          "condition": {
            "cpeid": "DMS*"
          },
          "events": [
            "0 BOOTSTRAP"
          ],
          "method": "CWMP.GetParameterValues",
          "args": [
            "InternetGatewayDevice.ManagementServer."
          ],
          "executions": 1,
          "cron": "* * * * *",
          "period": 120,
          "batch": 100,
          "priority": 2,
          "create_record_ts": 1742377312,
          "ts": 1742378123,
          "author": "operator",
          "editor": "operator"
        }
      ]
    },
    "detail": "objects deleted successfully",
    "code": 200
  }
}

POST /delete_objects_by_id

Request:

curl -X 'POST' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/delete_objects_by_id' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "pr_key_column": "id",
  "pr_key_values": [
    "54ab83b7-185c-48e7-ab9c-b63b101712c4",
    "9d7aee15-7a27-46af-8c0d-fde567f41b09",
    "f2be7d50-84c4-4ff4-95d9-695c7b4c8a49"
  ],
  "batch_size": 10000,
  "return_deleted_records": true,
  "return_fields_of_deleted_records": []
}'

Response:

{
  "code": 200,
  "message": "response from CampaignStorage",
  "details": {
    "data": {
      "deleted_objects_number": 3,
      "failed_delete_objects_number": 0,
      "deleted_records": [
        {
          "enabled": false,
          "active": true,
          "id": "f2be7d50-84c4-4ff4-95d9-695c7b4c8a49",
          "name": "Get GPV4",
          "condition": {
            "cpeid": "DMS*"
          },
          "events": [
            "2 PERIODIC"
          ],
          "method": "CWMP.GetParameterValues",
          "args": [
            "InternetGatewayDevice.ManagementServer."
          ],
          "executions": 1,
          "cron": "",
          "period": 120,
          "batch": 100,
          "priority": 2,
          "create_record_ts": 1742381747,
          "ts": 1742381747,
          "author": "operator",
          "editor": ""
        },
        {
          "enabled": false,
          "active": true,
          "id": "54ab83b7-185c-48e7-ab9c-b63b101712c4",
          "name": "Get GPV6",
          "condition": {
            "cpeid": "DMS*"
          },
          "events": [
            "2 PERIODIC"
          ],
          "method": "CWMP.GetParameterValues",
          "args": [
            "InternetGatewayDevice.ManagementServer."
          ],
          "executions": 1,
          "cron": "",
          "period": 120,
          "batch": 100,
          "priority": 2,
          "create_record_ts": 1742381753,
          "ts": 1742381753,
          "author": "operator",
          "editor": ""
        },
        {
          "enabled": false,
          "active": true,
          "id": "9d7aee15-7a27-46af-8c0d-fde567f41b09",
          "name": "Get GPV7",
          "condition": {
            "cpeid": "DMS*"
          },
          "events": [
            "2 PERIODIC"
          ],
          "method": "CWMP.GetParameterValues",
          "args": [
            "InternetGatewayDevice.ManagementServer."
          ],
          "executions": 1,
          "cron": "",
          "period": 120,
          "batch": 100,
          "priority": 2,
          "create_record_ts": 1742381757,
          "ts": 1742381757,
          "author": "operator",
          "editor": ""
        }
      ]
    },
    "message": "objects deleted successfully",
    "code": 200
  }
}

DELETE /.*

Request:

curl -X 'DELETE' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/.*?id=a715cc01-4679-4e6e-9146-71eeee0713f2' \
  -H 'accept: application/json'

Response:

{
  "code": 204,
  "message": "response from CampaignStorage",
  "details": ""
}

GET /.*

Request:

curl -X 'GET' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/.*?limit=10000&author=admin' \
  -H 'accept: application/json'

Response:

{
  "code": 200,
  "message": "response from CampaignStorage",
  "details": [
    {
      "enabled": true,
      "active": true,
      "id": "de352cab-068b-4632-a4ec-4d2752ec2ea4",
      "name": "Get GPV",
      "condition": {},
      "events": [],
      "method": "CWMP.GetParameterNames",
      "args": {
        "NextLevel": true,
        "ParameterPath": "InternetGatewayDevice."
      },
      "executions": 1,
      "cron": "* * * * *",
      "period": 60,
      "batch": 100,
      "priority": 5,
      "create_record_ts": 1742374787,
      "ts": 1742374787,
      "author": "admin",
      "editor": ""
    },
    {
      "enabled": false,
      "active": true,
      "id": "8409b4f2-e818-4053-8e6b-8c75f82ef299",
      "name": "Activate WIFI",
      "condition": {},
      "events": [
        "2 PERIODIC"
      ],
      "method": "Campaigns.ActivateWiFi",
      "args": {},
      "executions": 1,
      "cron": "* * * * *",
      "period": 60,
      "batch": 100,
      "priority": 5,
      "create_record_ts": 1742374680,
      "ts": 1742374805,
      "author": "admin",
      "editor": "admin"
    }
  ]
}

PUT /.*

Request:

curl -X 'PUT' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/.*?id=30ca067a-0126-47cf-884b-3796b6eed02c' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "enabled": false,
  "active": false,
  "id": "30ca067a-0126-47cf-884b-3796b6eed02c",
  "name": "GET GPN",
  "condition": {
   "cpeid": "DMS*"
  },
  "events": [
    "0 BOOTSTRAP"
  ],
  "method": "CWMP.GetParameterValues",
  "args": [
   "InternetGatewayDevice.ManagementServer."
  ],
  "executions": 1,
  "cron": "* * * * *",
  "period": 120,
  "batch": 100,
  "priority": 2,
  "author": "operator",
  "editor": "operator"
}'

Response:

{
  "code": 204,
  "message": "response from CampaignStorage",
  "details": ""
}

POST /.*

Request:

url -X 'POST' \
  'http://127.0.0.1/v1/dyn/CampaignStorage/.*' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "enabled": false,
  "active": true,
  "id": "1560ed5c-172e-4b93-91cf-ba0d4708d997",
  "name": "Get GPV",
  "condition": {
  "cpeid": "DMS*"
  },
  "events": [
    "2 PERIODIC"
  ],
  "method": "CWMP.GetParameterValues",
  "args": [
   "InternetGatewayDevice.ManagementServer."
  ],
  "executions": 1,
  "cron": "",
  "period": 120,
  "batch": 100,
  "priority": 2,
  "create_record_ts": 1742374680,
  "ts": 1742374680,
  "author": "operator",
  "editor": ""
}'

Note: If the request does not contain the fields "id", "create_record_ts", and "ts", their values will be generated automatically.

Response:

{
  "code": 204,
  "message": "response from CampaignStorage",
  "details": ""
}

Multiple RPC: POST /.*

Example of requesting multiple RPC methods

Request:

url -X 'POST' \
  'http://localhost/v1/dyn/CampaignStorage/.*' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "enabled": false,
  "active": true,
  "id": "fdabb9a9-cde6-4f0c-95d3-b5f00c5750ad",
  "name": " Get RPC and GPV",
  "condition": {
    "cpeid": "DMS_DEVICE"
  },
  "events": [],
  "method": "Custom",
  "args": [
    {
      "args": {},
      "method": "CWMP.GetRPCMethods"
    },
    {
      "args": [
        "InternetGatewayDevice.ManagementServer.URL"
      ],
      "method": "CWMP.GetParameterValues"
    }
  ],
  "executions": 0,
  "cron": "",
  "period": 60,
  "batch": 100,
  "priority": 5,
  "create_record_ts": 1752744400,
  "ts": 1752744400,
  "author": "admin",
  "editor": ""
}'

Response:

{
  "code": 204,
  "message": "response from CampaignStorage",
  "details": ""
}

Campaign Result Storage Usage Example

The interaction examples are provided for the Campaign Result Storage service; for other Result services, the interaction is carried out in a similar manner.

GET /count.*

Request:

curl -X 'GET' \
  'http://localhost/v1/dyn/CampaignResultStorage/count.*' \
  -H 'accept: application/json'

Response:

{
  "code": 200,
  "message": "response from CampaignResultStorage",
  "details": 2
}

GET /.*

Example of retrieving data about sessions (campaigns) processed on a CPE with cpeid=DMS"

Request:

curl -X 'GET' \
  'http://localhost/v1/dyn/CampaignResultStorage/.*?limit=10000&cpeid=DMS%2A' \
  -H 'accept: application/json'

Response:

{
  "code": 200,
  "message": "response from CampaignResultStorage",
  "details": [
    {
      "id": "4ba932d6-6d23-45ec-8529-04b390a00386",
      "exit_code": 0,
      "campaignid": "389b799a-5cb3-4e6f-9310-50cc716cb65d",
      "ts": 1752665900,
      "cpeid": "DMS_DEVICE",
      "result": {}
    },
  {
      "id": "824567c9-b68c-417f-b6aa-6aadf61d4bf1",
      "exit_code": 0,
      "campaignid": "aa92a9af-94d4-4f25-bdc9-0b9c5dc53dbf",
      "ts": 1752667951,
      "cpeid": "DMS_DEVICE",
      "result": [
        "GetRPCMethods",
        "SetParameterValues",
        "GetParameterValues",
        "GetParameterNames",
        "SetParameterAttributes",
        "GetParameterAttributes",
        "AddObject",
        "DeleteObject",
        "Reboot",
        "Download"
      ]
    }
  ]
}

POST /delete_objects_by_id

Request:

curl -X 'POST' \
  'http://127.0.0.1/v1/dyn/CampaignResultStorage/delete_objects_by_id' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "pr_key_column": "id",
  "pr_key_values": [
    "result_001",
    "result_002",
    "result_003"
  ],
  "batch_size": 1000,
  "return_deleted_records": true,
  "return_fields_of_deleted_records": ["id", "campaignid", "cpeid", "exit_code"]
}'

Response:

{
  "code": 200,
  "message": "response from CampaignResultStorage",
  "details": {
    "data": {
      "deleted_objects_number": 3,
      "failed_delete_objects_number": 0,
      "deleted_records": [
        {
          "id": "result_001",
          "campaignid": "campaign_123",
          "cpeid": "DMS_001",
          "exit_code": 0
        },
        {
          "id": "result_002",
          "campaignid": "campaign_123",
          "cpeid": "DMS_002",
          "exit_code": 1
        },
        {
          "id": "result_003",
          "campaignid": "campaign_456",
          "cpeid": "DMS_003",
          "exit_code": 0
        }
      ]
    },
    "message": "objects deleted successfully",
    "code": 200
  }
}

POST /delete_objects

Request:

curl -X 'POST' \
  'http://localhost/v1/dyn/CampaignResultStorage/delete_objects' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "conditions": {
    "exit_code": 1
  },
  "batch_size": 1000,
  "return_deleted_records": true,
  "return_fields_of_deleted_records": ["id", "exit_code", "campaignid", "cpeid", "ts"]
}'

Response:

{
  "code": 200,
  "message": "response from CampaignResultStorage",
  "details": {
    "data": {
      "deleted_objects_number": 2,
      "deleted_records": [
        {
          "id": "result_old_001",
          "exit_code": 1,
          "campaignid": "old_campaign_001",
          "cpeid": "DMS_001",
          "ts": 1741999800
        },
        {
          "id": "result_old_002",
          "exit_code": 1,
          "campaignid": "old_campaign_002",
          "cpeid": "DMS_002",
          "ts": 1741999500
        }
      ]
    },
    "detail": "objects deleted successfully",
    "code": 200
  }
}

Interaction with Storages in DMS via NBI

General Information​

List of Storages:​

Interaction Methods​

Storage-Specific Parameters​

AuthStorage​

CampaignResultStorage​

CampaignStorage​

ConfigTemplateStorage​

CpeDbService​

CPE Device Status Table​

FirmwareResultStorage​

FirmwareStorage​

ScenarioHistoryStorage​

Campaign Storage Usage Example​

GET /count.*​

POST /delete_objects​

POST /delete_objects_by_id​

DELETE /.*​

GET /.*​

PUT /.*​

POST /.*​

Multiple RPC: POST /.*​

Campaign Result Storage Usage Example​

GET /count.*​

GET /.*​

POST /delete_objects_by_id​

POST /delete_objects​

General Information

List of Storages:

Interaction Methods

Storage-Specific Parameters

AuthStorage

CampaignResultStorage

CampaignStorage

ConfigTemplateStorage

CpeDbService

CPE Device Status Table

FirmwareResultStorage

FirmwareStorage

ScenarioHistoryStorage

Campaign Storage Usage Example

GET /count.*

POST /delete_objects

POST /delete_objects_by_id

DELETE /.*

GET /.*

PUT /.*

POST /.*

Multiple RPC: POST /.*

Campaign Result Storage Usage Example

GET /count.*

GET /.*

POST /delete_objects_by_id

POST /delete_objects
